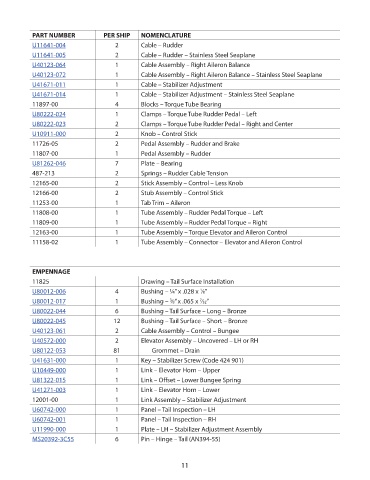

Page 14 - Piper PA-16 Clipper Parts Catalog

PART NUMBER PER SHIP NOMENCLATURE PRICE
U11641-004 2 Cable – Rudder 156.48
U11641-005 2 Cable – Rudder – Stainless Steel Seaplane 147.57
U40123-064 1 Cable Assembly – Right Aileron Balance 157.68
U40123-072 1 Cable Assembly – Right Aileron Balance – Stainless Steel Seaplane 168.02

U41671-011 1 Cable – Stabilizer Adjustment 367.42
U41671-014 1 Cable – Stabilizer Adjustment – Stainless Steel Seaplane 341.73
11897-00 4 Blocks – Torque Tube Bearing NM!
U80222-024 1 Clamps – Torque Tube Rudder Pedal – Left 37.88
U80222-023 2 Clamps – Torque Tube Rudder Pedal – Right and Center 40.50
U10911-000 2 Knob – Control Stick 13.71
11726-05 2 Pedal Assembly – Rudder and Brake NM!
11807-00 1 Pedal Assembly – Rudder NM!
U81262-046 7 Plate – Bearing 10.95
487-213 2 Springs – Rudder Cable Tension NM!
12165-00 2 Stick Assembly – Control – Less Knob NM!
12166-00 2 Stub Assembly – Control Stick NM!
11253-00 1 Tab Trim – Aileron NM!
11808-00 1 Tube Assembly – Rudder Pedal Torque – Left NM!
11809-00 1 Tube Assembly – Rudder Pedal Torque – Right NM!
12163-00 1 Tube Assembly – Torque Elevator and Aileron Control NM!
11158-02 1 Tube Assembly – Connector – Elevator and Aileron Control NM!

EMPENNAGE
11825 Drawing – Tail Surface Installation NM!
U80012-006 4 Bushing – ¼” x .028 x ⁄8” 19.76
1
U80012-017 1 Bushing – ⁄8” x .065 x ⁄32” 14.01
3
7
U80022-044 6 Bushing – Tail Surface – Long – Bronze 1.40
U80022-045 12 Bushing – Tail Surface – Short – Bronze 1.76
U40123-061 2 Cable Assembly – Control – Bungee 74.52
U40572-000 2 Elevator Assembly – Uncovered – LH or RH 743.95
U80122-053 81 Grommet – Drain 4.52

U41631-000 1 Key – Stabilizer Screw (Code 424 901) 20.01
U10449-000 1 Link – Elevator Horn – Upper 37.70
U81322-015 1 Link – Offset – Lower Bungee Spring 18.30
U41271-003 1 Link – Elevator Horn – Lower 18.71
12001-00 1 Link Assembly – Stabilizer Adjustment NM!
U60742-000 1 Panel – Tail Inspection – LH 42.37
U60742-001 1 Panel – Tail Inspection – RH 42.37
U11990-000 1 Plate – LH – Stabilizer Adjustment Assembly 39.94
MS20392-3C55 6 Pin – Hinge – Tail (AN394-55) 1.28

11
