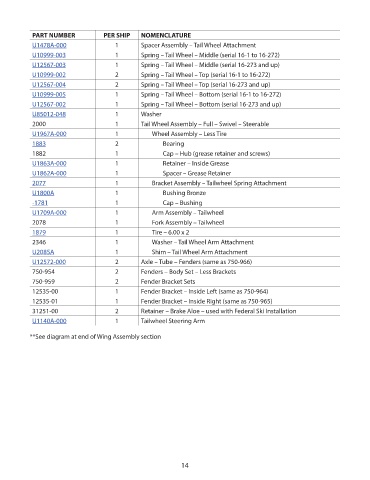

Page 17 - Piper PA-16 Clipper Parts Catalog

PART NUMBER PER SHIP NOMENCLATURE PRICES
U1478A-000 1 Spacer Assembly – Tail Wheel Attachment 95.09
U10999-003 1 Spring – Tail Wheel – Middle (serial 16-1 to 16-272) 81.67
U12567-003 1 Spring – Tail Wheel – Middle (serial 16-273 and up) 98.08
U10999-002 2 Spring – Tail Wheel – Top (serial 16-1 to 16-272) 56.83

U12567-004 2 Spring – Tail Wheel – Top (serial 16-273 and up) 60.83
U10999-005 1 Spring – Tail Wheel – Bottom (serial 16-1 to 16-272) 81.44
U12567-002 1 Spring – Tail Wheel – Bottom (serial 16-273 and up) 98.81
U85012-048 1 Washer 10.24
2000 1 Tail Wheel Assembly – Full – Swivel – Steerable NM!
U1967A-000 1 Wheel Assembly – Less Tire 574.36
1883 2 Bearing 103.94
1882 1 Cap – Hub (grease retainer and screws) NM!
U1863A-000 1 Retainer – Inside Grease 10.77
U1862A-000 1 Spacer – Grease Retainer 12.34
2077 1 Bracket Assembly – Tailwheel Spring Attachment NM!
U1800A 1 Bushing Bronze 91.48
-1781 1 Cap – Bushing 79.25
U1709A-000 1 Arm Assembly – Tailwheel 574.37
2078 1 Fork Assembly – Tailwheel NM!
1879 1 Tire – 6.00 x 2 195.35
2346 1 Washer – Tail Wheel Arm Attachment NM!
U2085A 1 Shim – Tail Wheel Arm Attachment 4.82
U12572-000 2 Axle – Tube – Fenders (same as 750-966) 291.96
750-954 2 Fenders – Body Set – Less Brackets NM!
750-959 2 Fender Bracket Sets NM!
12535-00 1 Fender Bracket – Inside Left (same as 750-964) NM!
12535-01 1 Fender Bracket – Inside Right (same as 750-965) NM!
31251-00 2 Retainer – Brake Aloe – used with Federal Ski Installation NM!
U1140A-000 1 Tailwheel Steering Arm 241.37

**See diagram at end of Wing Assembly section

14
