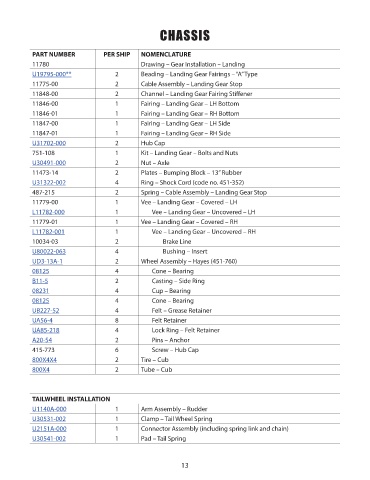

Page 16 - Piper PA-16 Clipper Parts Catalog

CHASSIS

PART NUMBER PER SHIP NOMENCLATURE PRICES
11780 Drawing – Gear Installation – Landing NM!
U19795-000** 2 Beading – Landing Gear Fairings – “A” Type 29.86
11775-00 2 Cable Assembly – Landing Gear Stop NM!
11848-00 2 Channel – Landing Gear Fairing Stiffener NM!
11846-00 1 Fairing – Landing Gear – LH Bottom NM!
11846-01 1 Fairing – Landing Gear – RH Bottom NM!

11847-00 1 Fairing – Landing Gear – LH Side NM!
11847-01 1 Fairing – Landing Gear – RH Side NM!
U31702-000 2 Hub Cap 63.01
751-108 1 Kit – Landing Gear – Bolts and Nuts NM!
U30491-000 2 Nut – Axle 85.04
11473-14 2 Plates – Bumping Block – 13” Rubber NM!
U31322-002 4 Ring – Shock Cord (code no. 451-352) 51.00
487-215 2 Spring – Cable Assembly – Landing Gear Stop NM!
11779-00 1 Vee – Landing Gear – Covered – LH NM!
L11782-000 1 Vee – Landing Gear – Uncovered – LH 2790.00
11779-01 1 Vee – Landing Gear – Covered – RH NM!
L11782-001 1 Vee – Landing Gear – Uncovered – RH 2790.00
10034-03 2 Brake Line NM!
U80022-063 4 Bushing – Insert 17.51
UD3-13A-1 2 Wheel Assembly – Hayes (451-760) 2089.56
08125 4 Cone – Bearing 49.98
B11-5 2 Casting – Side Ring 66.40
08231 4 Cup – Bearing 31.18
08125 4 Cone – Bearing 49.98
UB227-52 4 Felt – Grease Retainer 1.76
UA56-4 8 Felt Retainer 10.19
UA85-218 4 Lock Ring – Felt Retainer 36.40
A20-54 2 Pins – Anchor 23.76
415-773 6 Screw – Hub Cap NM!
800X4X4 2 Tire – Cub 682.50
800X4 2 Tube – Cub 401.11

TAILWHEEL INSTALLATION

U1140A-000 1 Arm Assembly – Rudder 241.37
U30531-002 1 Clamp – Tail Wheel Spring 112.46
U2151A-000 1 Connector Assembly (including spring link and chain) 89.10
U30541-002 1 Pad – Tail Spring 12.55

13
