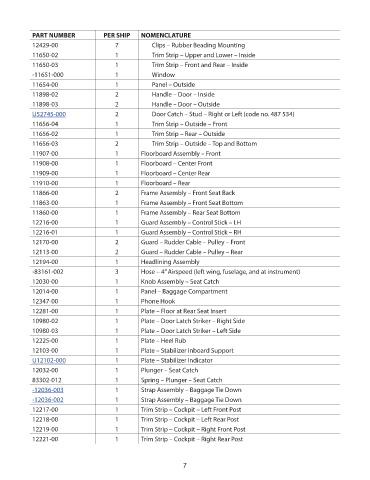

Page 10 - Piper PA-16 Clipper Parts Catalog

PART NUMBER PER SHIP NOMENCLATURE PRICE
12429-00 7 Clips – Rubber Beading Mounting NM!
11650-02 1 Trim Strip – Upper and Lower – Inside NM!
11650-03 1 Trim Strip – Front and Rear – Inside NM!
-11651-000 1 Window NM!

11654-00 1 Panel – Outside NM!
11898-02 2 Handle – Door – Inside NM!
11898-03 2 Handle – Door – Outside NM!
U52745-000 2 Door Catch – Stud – Right or Left (code no. 487 534) 5.07
11656-04 1 Trim Strip – Outside – Front NM!
11656-02 1 Trim Strip – Rear – Outside NM!
11656-03 2 Trim Strip – Outside – Top and Bottom NM!
11907-00 1 Floorboard Assembly – Front NM!
11908-00 1 Floorboard – Center Front NM!
11909-00 1 Floorboard – Center Rear NM!
11910-00 1 Floorboard – Rear NM!
11866-00 2 Frame Assembly – Front Seat Back NM!
11863-00 1 Frame Assembly – Front Seat Bottom NM!
11860-00 1 Frame Assembly – Rear Seat Bottom NM!
12216-00 1 Guard Assembly – Control Stick – LH NM!
12216-01 1 Guard Assembly – Control Stick – RH NM!
12170-00 2 Guard – Rudder Cable – Pulley – Front NM!
12113-00 2 Guard – Rudder Cable – Pulley – Rear NM!
12194-00 1 Headlining Assembly NM!
-83161-002 3 Hose – 4” Airspeed (left wing, fuselage, and at instrument) NM!
12030-00 1 Knob Assembly – Seat Catch NM!
12014-00 1 Panel – Baggage Compartment NM!
12347-00 1 Phone Hook NM!
12281-00 1 Plate – Floor at Rear Seat Insert NM!
10980-02 1 Plate – Door Latch Striker – Right Side NM!
10980-03 1 Plate – Door Latch Striker – Left Side NM!
12225-00 1 Plate – Heel Rub NM!
12103-00 1 Plate – Stabilizer Inboard Support NM!

U12102-000 1 Plate – Stabilizer Indicator 162.66
12032-00 1 Plunger – Seat Catch NM!
83302-012 1 Spring – Plunger – Seat Catch NM!
-12036-003 1 Strap Assembly – Baggage Tie Down 20.92
-12036-002 1 Strap Assembly – Baggage Tie Down 19.93
12217-00 1 Trim Strip – Cockpit – Left Front Post NM!
12218-00 1 Trim Strip – Cockpit – Left Rear Post NM!
12219-00 1 Trim Strip – Cockpit – Right Front Post NM!
12221-00 1 Trim Strip – Cockpit – Right Rear Post NM!

7
