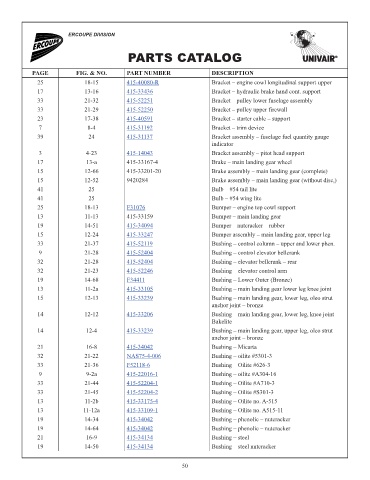

Page 55 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
25 18-15 415-40080-R Bracket – engine cowl longitudinal support upper 105.74
17 13-16 415-33436 Bracket – hydraulic brake hand cont. support 49.84
33 21-32 415-52251 Bracket – pulley lower fuselage assembly 16.51
33 21-29 415-52250 Bracket – pulley upper firewall 23.03
23 17-38 415-40591 Bracket – starter cable – support 24.18
7 8-4 415-31192 Bracket – trim device 206.16
39 24 415-31137 Bracket assembly – fuselage fuel quantity gauge 5.67
indicator
3 4-23 415-14043 Bracket assembly – pitot head support 57.30
17 13-a 415-33167-4 Brake – main landing gear wheel NM!
15 12-66 415-33201-20 Brake assembly – main landing gear (complete) NM!
15 12-52 9420284 Brake assembly – main landing gear (without disc,) NM!
41 25 Bulb – #54 tail lite
41 25 Bulb – #54 wing lite
25 18-13 F31076 Bumper – engine top cowl support 7.95
13 11-13 415-33159 Bumper – main landing gear NM!
19 14-51 415-34094 Bumper – nutcracker – rubber 44.52
15 12-24 415-33247 Bumper assembly – main landing gear, upper leg 58.63
33 21-37 415-52119 Bushing – control column – upper and lower phen. 87.90
9 21-28 415-52404 Bushing – control elevator bellcrank 4.61
32 21-28 415-52404 Bushing – elevator bellcrank – rear 4.61
32 21-23 415-52246 Bushing – elevator control arm 4.01
19 14-68 F34411 Bushing – Lower Outer (Bronze) 232.58
13 11-2a 415-33105 Bushing – main landing gear lower leg knee joint 42.12
15 12-13 415-33239 Bushing – main landing gear, lower leg, oleo strut 5.67
anchor joint – bronze
14 12-12 415-33206 Bushing – main landing gear, lower leg, knee joint – 14.75
Bakelite
14 12-4 415-33239 Bushing – main landing gear, upper leg, oleo strut 5.67
anchor joint – bronze
21 16-8 415-34042 Bushing – Micarta 57.04
32 21-22 NAS75-4-006 Bushing – oilite #5301-3 6.40
33 21-36 F52118-6 Bushing – Oilite #626-3 3.40
9 9-2a 415-22016-1 Bushing – oilite #A304-16 3.68
33 21-44 415-52204-1 Bushing – Oilite #A710-3 6.54
33 21-45 415-52204-2 Bushing – Oilite #S301-3 6.54
13 11-2b 415-33175-4 Bushing – Oilite no. A-515 8.10
13 11-12a 415-33109-1 Bushing – Oilite no. A515-11 26.38
19 14-34 415-34042 Bushing – phenolic – nutcracker 57.04
19 14-64 415-34042 Bushing – phenolic – nutcracker 57.04
21 16-9 415-34134 Bushing – steel 79.93
19 14-50 415-34134 Bushing – steel nutcracker 79.93
