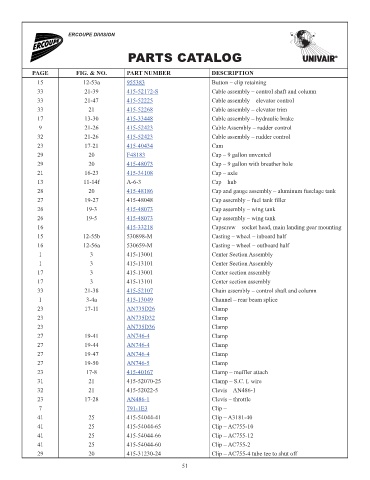

Page 56 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
15 12-53a 955383 Button – clip retaining NM!
33 21-39 415-52172-S Cable assembly – control shaft and column 164.41
33 21-47 415-52225 Cable assembly – elevator control 324.20
33 21 415-52268 Cable assembly – elevator trim 101.16
17 13-30 415-33448 Cable assembly – hydraulic brake 76.74
9 21-26 415-52423 Cable Assembly – rudder control 119.34
32 21-26 415-52423 Cable assembly – rudder control 119.34
23 17-21 415-40434 Cam 15.49
29 20 F48183 Cap – 9 gallon unvented 334.69
29 20 415-48073 Cap – 9 gallon with breather hole 131.45
21 16-23 415-34108 Cap – axle 56.88
13 11-14f A-6-3 Cap – hub NM!
28 20 415-48186 Cap and gauge assembly – aluminum fuselage tank 187.29
27 19-27 415-48048 Cap assembly – fuel tank filler NM!
26 19-3 415-48073 Cap assembly – wing tank 131.45
26 19-5 415-48073 Cap assembly – wing tank 131.45
16 415-33218 Capscrew – socket head, main landing gear mounting 13.30
15 12-55b 530898-M Casting – wheel – inboard half NM!
16 12-56a 530659-M Casting – wheel – outboard half NM!
1 3 415-13001 Center Section Assembly NM!
1 3 415-13101 Center Section Assembly NM!
17 3 415-13001 Center section assembly NM!
17 3 415-13101 Center section assembly NM!
33 21-38 415-52107 Chain assembly – control shaft and column 35.66
1 3-4a 415-13049 Channel – rear beam splice 128.73
23 17-11 AN735D26 Clamp 1.13
23 AN735D32 Clamp 1.21
23 AN735D36 Clamp 3.53
27 19-41 AN746-4 Clamp 1.89
27 19-44 AN746-4 Clamp 1.89
27 19-47 AN746-4 Clamp 1.89
27 19-50 AN746-5 Clamp 1.89
23 17-8 415-40167 Clamp – muffler attach 127.30
31 21 415-52070-25 Clamp – S.C. I. wire NM!
32 21 415-52022-5 Clevis – AN486-1 NM!
23 17-28 AN486-1 Clevis – throttle 39.87
7 791-1E3 Clip – NM!
41 25 415-54044-41 Clip – A3181-40 NM!
41 25 415-54044-65 Clip – AC755-10 NM!
41 25 415-54044-66 Clip – AC755-12 NM!
41 25 415-54044-60 Clip – AC755-2 NM!
29 20 415-31230-24 Clip – AC755-4 tube tee to shut off NM!
