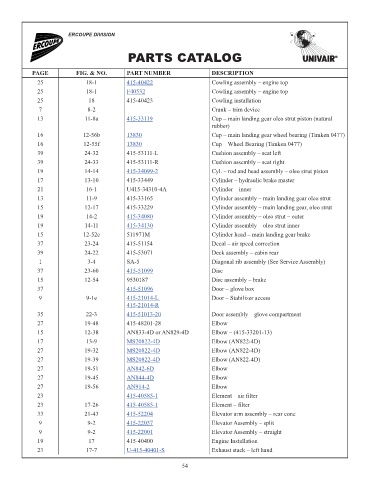

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
25 18-1 415-40422 Cowling assembly – engine top 1091.20
25 18-1 F40532 Cowling assembly – engine top 1072.63
25 18 415-40423 Cowling installation NM!
7 8-2 Crank – trim device
13 11-8a 415-33119 Cup – main landing gear oleo strut piston (natural 50.89
rubber)
16 12-56b 13830 Cup – main landing gear wheel bearing (Timken 0477) 34.89
16 12-55f 13830 Cup – Wheel Bearing (Timken 0477) 34.89
39 24-32 415-53111-L Cushion assembly – seat left NM!
39 24-33 415-53111-R Cushion assembly – seat right NM!
19 14-14 415-34099-2 Cyl. – rod and head assembly – oleo strut piston 746.33
17 13-10 415-33449 Cylinder – hydraulic brake master NM!
21 16-1 U415-34310-4A Cylinder – inner NM!
13 11-9 415-33165 Cylinder assembly – main landing gear oleo strut NM!
15 12-17 415-33229 Cylinder assembly – main landing gear, oleo strut NM!
19 14-2 415-34080 Cylinder assembly – oleo strut – outer 1218.76
19 14-11 415-34130 Cylinder assembly – oleo strut inner 1204.67
15 12-52e 511971M Cylinder head – main landing gear brake NM!
37 23-24 415-51154 Decal – air speed correction NM!
39 24-22 415-53071 Deck assembly – cabin rear NM!
1 3-4 SA-5 Diagonal rib assembly (See Service Assembly) NM!
37 23-60 415-51099 Disc 53.62
15 12-54 9530187 Disc assembly – brake NM!
37 415-51096 Door – glove box 292.20
9 9-1e 415-21014-L Door – Stabilizer access 17.64
415-21014-R
35 22-3 415-51013-20 Door assembly – glove compartment 292.20
27 19-48 415-48201-28 Elbow NM!
15 12-38 AN833-4D or AN829-4D Elbow – (415-33201-13) NM!
17 13-9 MS20822-4D Elbow (AN822-4D) 20.00
27 19-32 MS20822-4D Elbow (AN822-4D) 20.00
27 19-39 MS20822-4D Elbow (AN822-4D) 20.00
27 19-51 AN842-6D Elbow 24.00
27 19-45 AN844-4D Elbow 19.80
27 19-56 AN914-2 Elbow 53.82
23 415-40585-1 Element – air filter 121.60
23 17-26 415-40585-1 Element – filter 121.60
33 21-43 415-52204 Elevator arm assembly – rear cone 141.58
9 9-2 415-22037 Elevator Assembly – split 3696.39
9 9-2 415-22001 Elevator Assembly – straight 4102.59
19 17 415-40400 Engine Installation NM!
23 17-7 U-415-40401-S Exhaust stack – left hand 1418.49

54
