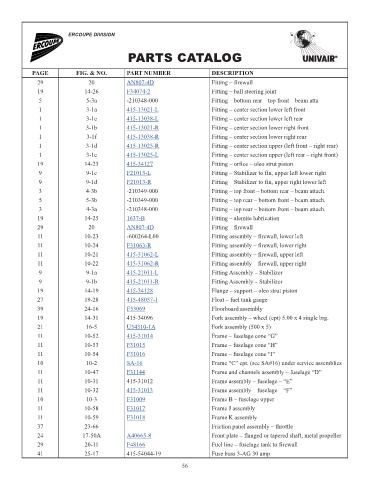

Page 61 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
29 20 AN807-4D Fitting – firewall 21.32
19 14-26 F34074-2 Fitting – ball steering joint 33.96
5 5-3a -210348-000 Fitting – bottom rear – top front – beam atta 408.89
1 3-1a 415-13021-L Fitting – center section lower left front 408.89
1 3-1e 415-13038-L Fitting – center section lower left rear 408.89
1 3-1b 415-13021-R Fitting – center section lower right front 408.89
1 3-1f 415-13038-R Fitting – center section lower right rear 408.89
1 3-1d 415-13025-R Fitting – center section upper (left front – right rear) NM!
1 3-1c 415-13025-L Fitting – center section upper (left rear – right front) NM!
19 14-23 415-34127 Fitting – orfice – oleo strut piston 110.06
9 9-1c F21013-L Fitting – Stabilizer to fin, upper left lower right 80.93
9 9-1d F21013-R Fitting – Stabilizer to fin, upper right lower left 80.93
3 4-3b -210349-000 Fitting – top front – bottom rear – beam attach. 408.89
5 5-3b -210349-000 Fitting – top rear – bottom front – beam attach. 408.89
3 4-3a -210348-000 Fitting – top rear – bottom front – beam attach. 408.89
19 14-25 1637-B Fitting – alemite lubrication 2.85
29 20 AN807-4D Fitting – firewall 21.32
11 10-23 -600264-L00 Fitting assembly – firewall, lower left 293.90
11 10-24 F31063-R Fitting assembly – firewall, lower right 293.90
11 10-21 415-31062-L Fitting assembly – firewall, upper left 263.04
11 10-22 415-31062-R Fitting assembly – firewall, upper right 263.04
9 9-1a 415-21011-L Fitting Assembly – Stabilizer 30.16
9 9-1b 415-21011-R Fitting Assembly – Stabilizer 34.26
19 14-19 415-34128 Flange – support – oleo strut piston 65.97
27 19-28 415-48057-1 Float – fuel tank gauge 24.03
39 24-16 F53069 Floorboard assembly 213.27
19 14-31 415-34096 Fork assembly – wheel (cpt) 5.00 x 4 single brg. NM!
21 16-5 U34310-1A Fork assembly (500 x 5) 581.81
11 10-52 415-31014 Frame – fuselage cone “G” 144.01
11 10-53 F31015 Frame – fuselage cone “H” 113.55
11 10-54 F31016 Frame – fuselage cone “I” 124.96
10 10-2 SA-16 Frame “C” cpt. (see SA#16) under service assemblies
11 10-47 F31144 Frame and channels assembly – fuselage “D” 1220.35
11 10-31 415-31012 Frame assembly – fuselage – “E” NM!
11 10-32 415-31013 Frame assembly – fuselage – “F” 594.78
10 10-3 F31009 Frame B – fuselage upper 109.95
11 10-58 F31017 Frame J assembly 139.45
11 10-59 F31018 Frame K assembly 186.83
37 23-66 Friction panel assembly – throttle
24 17-50A A40665-8 Front plate – flanged or tapered shaft, metal propeller 150.56
29 20-11 F48166 Fuel line – fuselage tank to firewall 56.72
41 25-17 415-54044-19 Fuse buss 3-AG 30 amp NM!
56
