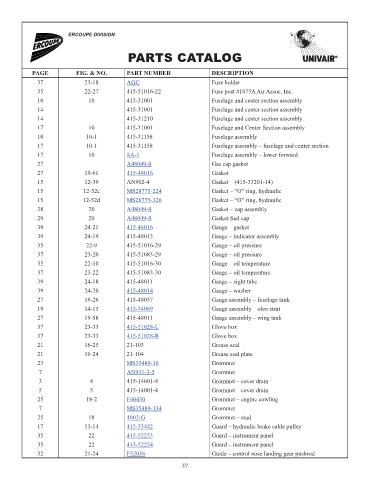

Page 62 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
37 23-18 AGC Fuse holder 4.27
35 22-27 415-51016-22 Fuse post #1075A Air Assoc. Inc. NM!
10 10 415-31001 Fuselage and center section assembly NM!
14 415-31001 Fuselage and center section assembly NM!
14 415-31210 Fuselage and center section assembly NM!
17 10 415-31001 Fuselage and Center Section assembly NM!
10 10-1 415-31158 Fuselage assembly NM!
17 10-1 415-31158 Fuselage assembly – fuselage and center section NM!
17 10 SA-1 Fuselage assembly – lower forward 4046.77
27 A48049-S Gas cap gasket 11.53
27 19-61 415-48016 Gasket 4.21
15 12-39 AN902-4 Gasket – (415-33201-14) NM!
15 12-52c MS28775-224 Gasket – “O” ring, hydraulic 5.96
15 12-52d MS28775-326 Gasket – “O” ring, hydraulic 2.14
28 20 A48049-S Gasket – cap assembly 11.53
29 20 A48049-S Gasket fuel cap 11.53
39 24-21 415-48016 Gauge – gasket 4.21
39 24-19 415-48013 Gauge – indicator assembly NM!
35 22-9 415-51016-29 Gauge – oil pressure NM!
37 23-20 415-51083-29 Gauge – oil pressure NM!
35 22-10 415-51016-30 Gauge – oil temperature NM!
37 23-22 415-51083-30 Gauge – oil temperature NM!
39 24-18 415-48011 Gauge – sight tube NM!
39 24-20 415-48014 Gauge – washer 3.68
27 19-26 415-48057 Gauge assembly – fuselage tank NM!
19 14-15 415-34089 Gauge assembly – oleo strut 88.70
27 19-58 415-48011 Gauge assembly – wing tank NM!
37 23-33 415-51028-L Glove box 116.46
37 23-33 415-51028-R Glove box 116.46
21 16-25 21-103 Grease seal NM!
21 16-24 21-104 Grease seal plate NM!
23 MS35489-16 Grommet 1.78
7 AN931-3-5 Grommet 1.61
3 4 415-14001-4 Grommet – cover drain NM!
5 5 415-14001-4 Grommet – cover drain NM!
25 18-2 F40430 Grommet – engine cowling 28.90
7 MS35489-134 Grommet 0.71
25 18 4002-G Grommet – stud 2.57
17 13-14 415-33442 Guard – hydraulic brake cable pulley 26.10
35 22 415-52253 Guard – instrument panel 21.87
35 22 415-52254 Guard – instrument panel 18.38
32 21-24 F52056 Guide – control nose landing gear pushrod 11.35
