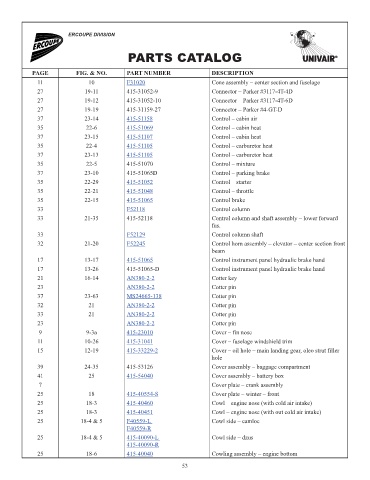

Page 58 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
11 10 F31020 Cone assembly – center section and fuselage 8815.99
27 19-11 415-31052-9 Connector – Parker #3117-4T-4D NM!
27 19-12 415-31052-10 Connector – Parker #3117-4T-6D NM!
27 19-19 415-31159-27 Connector – Parker #4-GT-D NM!
37 23-14 415-51158 Control – cabin air 134.28
35 22-6 415-51069 Control – cabin heat 140.54
37 23-15 415-51107 Control – cabin heat 107.46
35 22-4 415-51105 Control – carburetor heat 225.31
37 23-13 415-51105 Control – carburetor heat 225.31
35 22-5 415-51070 Control – mixture NM!
37 23-10 415-51065D Control – parking brake NM!
35 22-29 415-51052 Control – starter 37.02
35 22-21 415-51048 Control – throttle 444.41
35 22-15 415-51065 Control brake 223.10
33 F52118 Control column 1560.73
33 21-35 415-52118 Control column and shaft assembly – lower forward NM!
fus.
33 F52129 Control column shaft 1668.54
32 21-20 F52245 Control horn assembly – elevator – center section front 468.00
beam
17 13-17 415-51065 Control instrument panel hydraulic brake hand 223.10
17 13-26 415-51065-D Control instrument panel hydraulic brake hand NM!
21 16-14 AN380-2-2 Cotter key 0.04
23 AN380-2-2 Cotter pin 0.04
37 23-63 MS24665-138 Cotter pin 0.08
32 21 AN380-2-2 Cotter pin 0.04
33 21 AN380-2-2 Cotter pin 0.04
23 AN380-2-2 Cotter pin 0.04
9 9-3a 415-23010 Cover – fin nose 179.05
11 10-26 415-31041 Cover – fuselage windshield trim NM!
15 12-19 415-33229-2 Cover – oil hole – main landing gear, oleo strut filler 1.95
hole
39 24-35 415-53126 Cover assembly – baggage compartment NM!
41 25 415-54040 Cover assembly – battery box 436.37
7 Cover plate – crank assembly
25 18 415-40554-S Cover plate – winter – front 182.75
25 18-3 415-40460 Cowl – engine nose (with cold air intake) 1726.61
25 18-3 415-40451 Cowl – engine nose (with out cold air intake) 1631.43
25 18-4 & 5 F40559-L Cowl side – camloc 1001.08
F40559-R
25 18-4 & 5 415-40090-L Cowl side – dzus 1303.19
415-40090-R
25 18-6 415-40040 Cowling assembly – engine bottom 1156.52
53
