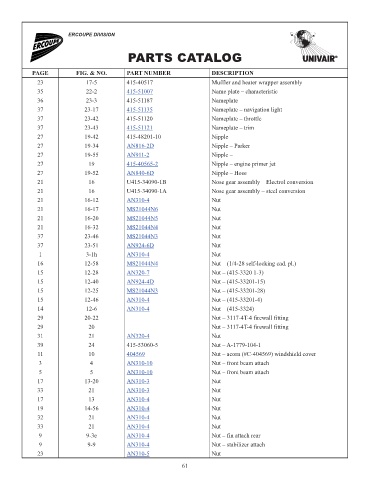

Page 66 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
23 17-5 415-40517 Muffler and heater wrapper assembly NM!
35 22-2 415-51007 Name plate – characteristic 8.51
36 23-3 415-51187 Nameplate NM!
37 23-17 415-51135 Nameplate – navigation light 15.62
37 23-42 415-51120 Nameplate – throttle NM!
37 23-43 415-51121 Nameplate – trim 14.18
27 19-42 415-48201-10 Nipple NM!
27 19-34 AN816-2D Nipple – Parker 8.50
27 19-55 AN911-2 Nipple – 10.04
27 19 415-40565-2 Nipple – engine primer jet 170.33
27 19-52 AN840-6D Nipple – Hose 11.96
21 16 U415-34090-1B Nose gear assembly – Electrol conversion NM!
21 16 U415-34090-1A Nose gear assembly – steel conversion NM!
21 16-12 AN310-4 Nut 3.10
21 16-17 MS21044N6 Nut 0.58
21 16-20 MS21044N5 Nut 0.50
21 16-32 MS21044N4 Nut 0.30
37 23-46 MS21044N3 Nut 0.51
37 23-51 AN924-6D Nut 2.45
1 3-1h AN310-4 Nut 3.10
16 12-58 MS21044N4 Nut – (1/4-28 self-locking cad. pl.) 0.30
15 12-28 AN320-7 Nut – (415-3320 1-3) 3.55
15 12-40 AN924-4D Nut – (415-33201-15) 2.14
15 12-25 MS21044N3 Nut – (415-33201-28) 0.51
15 12-46 AN310-4 Nut – (415-33201-4) 3.10
14 12-6 AN310-4 Nut – (415-3324) 3.10
29 20-22 Nut – 3117-4T-4 firewall fitting NM!
29 20 Nut – 3117-4T-4 firewall fitting NM!
31 21 AN320-4 Nut 2.52
39 24 415-53060-5 Nut – A-1779-104-1 NM!
11 10 404569 Nut – acorn (#C-404569) windshield cover 0.09
3 4 AN310-10 Nut – front beam attach 7.60
5 5 AN310-10 Nut – front beam attach 7.60
17 13-20 AN310-3 Nut 2.62
33 21 AN310-3 Nut 2.62
17 13 AN310-4 Nut 3.10
19 14-56 AN310-4 Nut 3.10
32 21 AN310-4 Nut 3.10
33 21 AN310-4 Nut 3.10
9 9-3e AN310-4 Nut – fin attach rear 3.10
9 9-9 AN310-4 Nut – stabilizer attach 3.10
23 AN310-5 Nut 2.20
