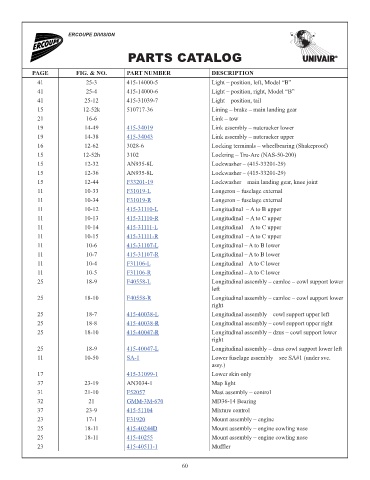

Page 65 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
41 25-3 415-14000-5 Light – position, left, Model “B” NM!
41 25-4 415-14000-6 Light – position, right, Model “B” NM!
41 25-12 415-31039-7 Light – position, tail NM!
15 12-52k 510717-36 Lining – brake – main landing gear NM!
21 16-6 Link – tow
19 14-49 415-34019 Link assembly – nutcracker lower 540.57
19 14-38 415-34043 Link assembly – nutcracker upper 518.30
16 12-62 3028-6 Locking terminals – wheelbearing (Shakeproof) NM!
15 12-52h 3102 Lockring – Tru-Arc (NAS-50-200) NM!
15 12-32 AN935-8L Lockwasher – (415-33201-29) NM!
15 12-36 AN935-8L Lockwasher – (415-33201-29) NM!
15 12-44 F33201-19 Lockwasher – main landing gear, knee joint 5.67
11 10-33 F31019-L Longeron – fuselage external 390.52
11 10-34 F31019-R Longeron – fuselage external 390.52
11 10-12 415-31110-L Longitudinal – A to B upper 42.68
11 10-13 415-31110-R Longitudinal – A to B upper 42.68
11 10-14 415-31111-L Longitudinal – A to C upper 540.19
11 10-15 415-31111-R Longitudinal – A to C upper 540.19
11 10-6 415-31107-L Longitudinal – A to B lower 174.00
11 10-7 415-31107-R Longitudinal – A to B lower 174.00
11 10-4 F31106-L Longitudinal – A to C lower 311.27
11 10-5 F31106-R Longitudinal – A to C lower 311.27
25 18-9 F40558-L Longitudinal assembly – camloc – cowl support lower 244.41
left
25 18-10 F40558-R Longitudinal assembly – camloc – cowl support lower 244.41
right
25 18-7 415-40038-L Longitudinal assembly – cowl support upper left 302.49
25 18-8 415-40038-R Longitudinal assembly – cowl support upper right 302.49
25 18-10 415-40047-R Longitudinal assembly – dzus – cowl support lower 244.21
right
25 18-9 415-40047-L Longitudinal assembly – dzus cowl support lower left 244.21
11 10-50 SA-1 Lower fuselage assembly – see SA#1 (under svc. 4046.77
assy.)
17 415-31099-1 Lower skin only 225.88
37 23-19 AN3034-1 Map light NM!
31 21-10 F52057 Mast assembly – control 1024.59
32 21 GMM-3M-670 MD36-14 Bearing 23.88
37 23-9 415-51104 Mixture control 120.24
23 17-1 F31920 Mount assembly – engine 3979.86
25 18-11 415-40244D Mount assembly – engine cowling nose 1243.61
25 18-11 415-40255 Mount assembly – engine cowling nose 813.71
23 415-40511-1 Muffler 1358.94

60
