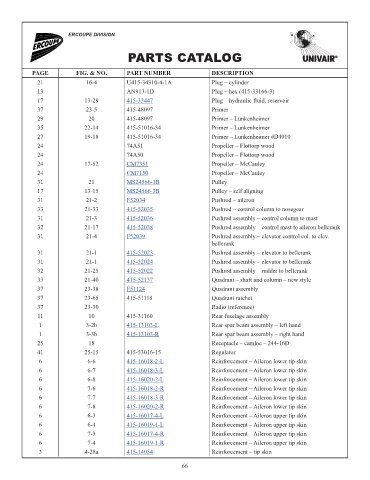

Page 71 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
21 16-4 U415-34310-4-1A Plug – cylinder NM!
13 AN913-1D Plug – hex (415-33166-3) NM!
17 13-29 415-33447 Plug – hydraulic fluid, reservoir 13.26
37 23-5 415-48097 Primer NM!
29 20 415-48097 Primer – Lunkenheimer NM!
35 22-14 415-51016-34 Primer – Lunkenheimer NM!
27 19-18 415-51016-34 Primer – Lunkenheimer #D4010 NM!
24 74A51 Propeller – Flottorp wood NM!
24 74A50 Propeller – Flottorp wood NM!
24 17-52 CM7351 Propeller – McCauley 4728.80
24 CM7150 Propeller – McCauley 8546.05
31 21 MS24566-1B Pulley – 48.22
17 13-15 MS24566-3B Pulley – self aligning 47.38
31 21-2 F52034 Pushrod – aileron 240.02
33 21-33 415-52035 Pushrod – control column to nosegear 263.83
31 21-3 415-52036 Pushrod assembly – control column to mast 263.83
32 21-17 415-52038 Pushrod assembly – control mast to aileron bellcrank 224.72
31 21-4 F52039 Pushrod assembly – elevator control col. to elev. 108.14
bellcrank
31 21-1 415-52023 Pushrod assembly – elevator to bellcrank 125.21
31 21-1 415-52024 Pushrod assembly – elevator to bellcrank 133.78
32 21-25 415-52022 Pushrod assembly – rudder to bellcrank 372.27
33 21-40 415-52137 Quadrant – shaft and column – new style 324.16
37 23-38 F51124 Quadrant assembly 1017.51
37 23-65 415-51118 Quadrant ratchet NM!
37 23-30 Radio (reference)
11 10 415-31160 Rear fuselage assembly NM!
1 3-2b 415-13103-L Rear spar beam assembly – left hand 649.93
1 3-3b 415-13103-R Rear spar beam assembly – right hand 586.70
25 18 Receptacle – camloc – 244-16D
41 25-15 415-53016-15 Regulator NM!
6 6-6 415-16018-2-L Reinforcement – Aileron lower tip skin 7.95
6 6-7 415-16018-3-L Reinforcement – Aileron lower tip skin 7.95
6 6-8 415-16020-2-L Reinforcement – Aileron lower tip skin 7.95
6 7-6 415-16018-2-R Reinforcement – Aileron lower tip skin 7.95
6 7-7 415-16018-3-R Reinforcement – Aileron lower tip skin 7.95
6 7-8 415-16020-2-R Reinforcement – Aileron lower tip skin 7.95
6 6-3 415-16017-4-L Reinforcement – Aileron upper tip skin 7.95
6 6-4 415-16019-1-L Reinforcement – Aileron upper tip skin 7.95
6 7-3 415-16017-4-R Reinforcement – Aileron upper tip skin 7.95
6 7-4 415-16019-1-R Reinforcement – Aileron upper tip skin 7.95
3 4-28a 415-14054 Reinforcement – tip skin 6.23
