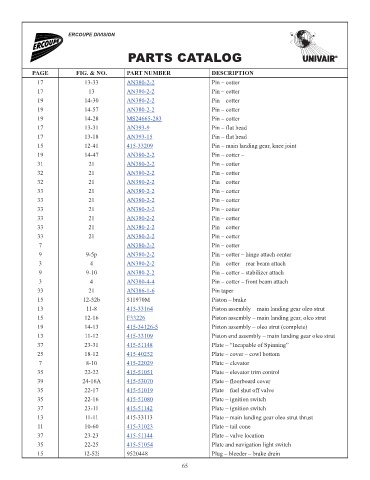

Page 70 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
17 13-33 AN380-2-2 Pin – cotter 0.04
17 13 AN380-2-2 Pin – cotter 0.04
19 14-30 AN380-2-2 Pin – cotter 0.04
19 14-57 AN380-2-2 Pin – cotter 0.04
19 14-28 MS24665-283 Pin – cotter 0.14
17 13-31 AN393-9 Pin – flat head 1.13
17 13-18 AN393-15 Pin – flat head 0.79
15 12-41 415-33209 Pin – main landing gear, knee joint 396.54
19 14-47 AN380-2-2 Pin – cotter – 0.04
31 21 AN380-2-2 Pin – cotter 0.04
32 21 AN380-2-2 Pin – cotter 0.04
32 21 AN380-2-2 Pin – cotter 0.04
33 21 AN380-2-2 Pin – cotter 0.04
33 21 AN380-2-2 Pin – cotter 0.04
33 21 AN380-2-2 Pin – cotter 0.04
33 21 AN380-2-2 Pin – cotter 0.04
33 21 AN380-2-2 Pin – cotter 0.04
33 21 AN380-2-2 Pin – cotter 0.04
7 AN380-2-2 Pin – cotter 0.04
9 9-5p AN380-2-2 Pin – cotter – hinge attach center 0.04
3 4 AN380-2-2 Pin – cotter – rear beam attach 0.04
9 9-10 AN380-2-2 Pin – cotter – stabilizer attach 0.04
3 4 AN380-4-4 Pin – cotter – front beam attach 0.47
33 21 AN386-1-6 Pin taper 6.08
15 12-52b 511970M Piston – brake NM!
13 11-8 415-33164 Piston assembly – main landing gear oleo strut 496.25
15 12-16 F33226 Piston assembly – main landing gear, oleo strut 485.02
19 14-13 415-34126-5 Piston assembly – oleo strut (complete) 1269.86
13 11-12 415-33109 Piston end assembly – main landing gear oleo strut 55.19
37 23-31 415-51148 Plate – “Incapable of Spinning” 19.62
25 18-12 415-40252 Plate – cover – cowl bottom 113.84
7 8-10 415-22029 Plate – elevator 10.89
35 22-22 415-51051 Plate – elevator trim control 11.35
39 24-16A 415-53070 Plate – floorboard cover 121.75
35 22-17 415-51019 Plate – fuel shut off valve 5.67
35 22-16 415-51080 Plate – ignition switch 5.65
37 23-11 415-51142 Plate – ignition switch 11.35
13 11-11 415-33113 Plate – main landing gear oleo strut thrust NM!
11 10-60 415-31023 Plate – tail cone 295.98
37 23-23 415-51144 Plate – valve location 7.68
35 22-25 415-51054 Plate and navigation light switch 6.23
15 12-52i 9520448 Plug – bleeder – brake drain NM!
65
