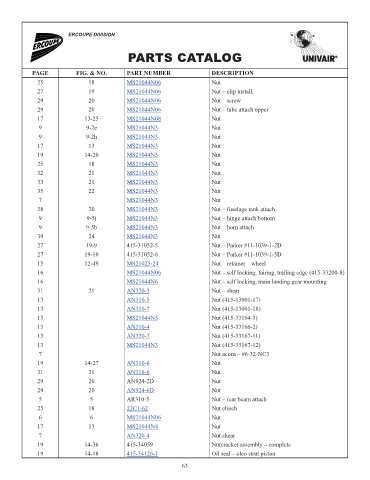

Page 68 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
25 18 MS21044N06 Nut 0.44
27 19 MS21044N06 Nut – clip install. 0.44
29 20 MS21044N06 Nut – screw 0.44
29 20 MS21044N06 Nut – tube attach upper 0.44
17 13-25 MS21044N08 Nut 0.24
9 9-2e MS21044N3 Nut 0.51
9 9-2h MS21044N3 Nut 0.51
17 13 MS21044N3 Nut 0.51
19 14-20 MS21044N3 Nut 0.51
25 18 MS21044N3 Nut 0.51
32 21 MS21044N3 Nut 0.51
33 21 MS21044N3 Nut 0.51
35 22 MS21044N3 Nut 0.51
7 MS21044N3 Nut 0.51
28 20 MS21044N3 Nut – fuselage tank attach 0.51
9 9-5j MS21044N3 Nut – hinge attach bottom 0.51
9 9-5b MS21044N3 Nut – horn attach 0.51
39 24 MS21044N3 Nut 0.51
27 19-9 415-31052-5 Nut – Parker #11-1039-1-2D NM!
27 19-10 415-31052-6 Nut – Parker #11-1039-1-5D NM!
15 12-49 MS21025-24 Nut – retainer – wheel 25.26
16 MS21044N06 Nut – self locking, fairing, trailing edge (415-33200-8) 0.44
16 MS21044N6 Nut – self locking, main landing gear mounting 0.58
31 21 AN320-3 Nut – shear 1.00
13 AN310-5 Nut (415-13001-17) 2.20
13 AN310-7 Nut (415-13001-18) 1.50
13 MS21044N5 Nut (415-33164-3) 0.50
13 AN310-4 Nut (415-33166-2) 3.10
13 AN320-7 Nut (415-33167-11) 3.55
13 MS21044N3 Nut (415-33167-12) 0.51
7 Nut acorn – #6-32-NC3 NM!
19 14-27 AN310-6 Nut 2.58
31 21 AN316-6 Nut 0.28
29 20 AN924-2D Nut NM!
29 20 AN924-6D Nut 2.45
5 5 AR310-5 Nut – rear beam attach NM!
25 18 22C1-62 Nut clinch 0.06
6 6 MS21044N06 Nut 0.44
17 13 MS21044N4 Nut 0.30
7 AN320-4 Nut shear 2.52
19 14-36 415-34059 Nutcracker assembly – complete NM!
19 14-18 415-34126-1 Oil seal – oleo strut piston 28.71
63
