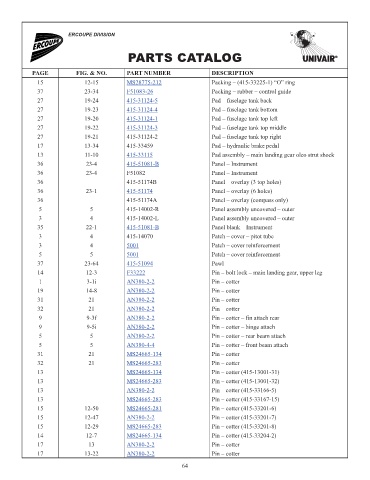

ERCOUPE DIVISION
PARTS CATALOG
PAGE FIG. & NO. PART NUMBER DESCRIPTION
15 12-15 MS28775-212 Packing – (415-33225-1) “O” ring 0.74
37 23-34 F51083-26 Packing – rubber – control guide 2.61
27 19-24 415-31124-5 Pad – fuselage tank back 10.96
27 19-23 415-31124-4 Pad – fuselage tank bottom 23.47
27 19-20 415-31124-1 Pad – fuselage tank top left 12.19
27 19-22 415-31124-3 Pad – fuselage tank top middle 8.24
27 19-21 415-31124-2 Pad – fuselage tank top right NM!
17 13-34 415-33459 Pad – hydraulic brake pedal NM!
13 11-10 415-33115 Pad assembly – main landing gear oleo strut shock 11.24
36 23-4 415-51081-B Panel – Instrument 523.53
36 23-4 F51082 Panel – Instrument NM!
36 415-51174B Panel – overlay (3 top holes) NM!
36 23-1 415-51174 Panel – overlay (6 holes) 318.09
36 415-51174A Panel – overlay (compass only) NM!
5 5 415-14002-R Panel assembly uncovered – outer NM!
3 4 415-14002-L Panel assembly uncovered – outer NM!
35 22-1 415-51081-B Panel blank – Instrument 523.53
3 4 415-14070 Patch – cover – pitot tube NM!
3 4 5001 Patch – cover reinforcement 28.47
5 5 5001 Patch – cover reinforcement 28.47
37 23-64 415-51094 Pawl 11.83
14 12-3 F33222 Pin – bolt lock – main landing gear, upper leg 6.96
1 3-1i AN380-2-2 Pin – cotter 0.04
19 14-8 AN380-2-2 Pin – cotter 0.04
31 21 AN380-2-2 Pin – cotter 0.04
32 21 AN380-2-2 Pin – cotter 0.04
9 9-3f AN380-2-2 Pin – cotter – fin attach rear 0.04
9 9-5i AN380-2-2 Pin – cotter – hinge attach 0.04
5 5 AN380-2-2 Pin – cotter – rear beam attach 0.04
5 5 AN380-4-4 Pin – cotter – front beam attach 0.43
31 21 MS24665-134 Pin – cotter 0.06
32 21 MS24665-283 Pin – cotter 0.04
13 MS24665-134 Pin – cotter (415-13001-31) 0.06
13 MS24665-283 Pin – cotter (415-13001-32) 0.04
13 AN380-2-2 Pin – cotter (415-33166-5) 0.04
13 MS24665-283 Pin – cotter (415-33167-15) 0.04
15 12-50 MS24665-281 Pin – cotter (415-33201-6) 0.08
15 12-47 AN380-2-2 Pin – cotter (415-33201-7) 0.04
15 12-29 MS24665-283 Pin – cotter (415-33201-8) 0.04
14 12-7 MS24665-134 Pin – cotter (415-33204-2) 0.06
17 13 AN380-2-2 Pin – cotter 0.04
17 13-22 AN380-2-2 Pin – cotter 0.04
64
