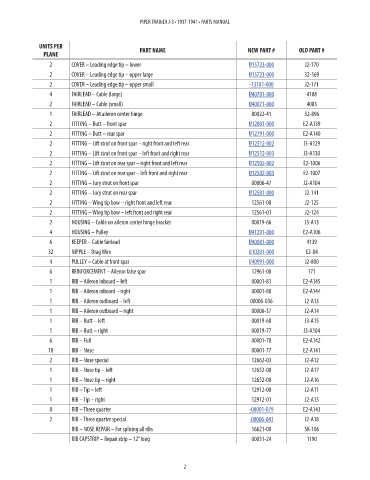

Page 10 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
2 COVER – Leading edge tip – lower U15723-000 J2-170 315.28
2 COVER – Leading edge tip – upper large U15723-000 32-169 315.28
2 COVER – Leading edge tip – upper small -13181-000 J2-171 0.00

4 FAIRLEAD – Cable (large) U40701-000 4108 1.44
2 FAIRLEAD – Cable (small) U40071-000 4083 1.45
1 FAIRLEAD – At aileron center hinge 80022-41 32-896 NM!
2 FITTING – Butt – front spar U12801-000 E2-A139 93.92
2 FITTING – Butt – rear spar U12791-000 E2-A140 103.79
2 FITTING – Lift strut on front spar – right front and left rear U12512-002 J3-A129 148.68
2 FITTING – Lift strut on front spar – left front and right rear U12512-003 J3-A130 136.07
2 FITTING – Lift strut on rear spar – right front and left rear U12502-002 E2-1006 136.03
2 FITTING – Lift strut on rear spar – left front and right rear U12502-003 E2-1007 136.03
2 FITTING – Jury strut on front spar 00006-47 J2-A104 NM!
2 FITTING – Jury strut on rear spar U12581-000 J2-141 23.40
2 FITTING – Wing tip bow – right front and left rear 12561-00 J2-125 NM!
2 FITTING – Wing tip bow – left front and right rear 12561-01 J2-124 NM!
2 HOUSING – Cable on aileron center hinge bracket 00019-66 J3-A13 NM!
4 HOUSING – Pulley U41291-000 E2-A106 61.65
6 KEEPER – Cable fairlead U40081-000 4139 0.54
32 NIPPLE – Drag Wire U10201-000 E2-84 12.94
4 PULLEY – Cable at front spar U40991-000 J2-800 20.19
6 REINFORCEMENT – Aileron false spar 12961-00 171 NM!
1 RIB – Aileron inboard – left 00001-81 E2-A145 NM!
1 RIB – Aileron inboard – right 00001-80 E2-A144 NM!
1 RIB – Aileron outboard – left 00006-036 J2-A13 NM!
1 RIB – Aileron outboard – right 00006-37 J2-A14 NM!
1 RIB – Butt – left 00019-68 J3-A15 NM!
1 RIB – Butt – right 00019-77 J3-A104 NM!
6 RIB – Full 00001-78 E2-A142 NM!
18 RIB – Nose 00001-77 E2-A141 NM!
2 RIB – Nose special 12662-03 J2-A12 NM!

1 RIB – Nose tip – left 12652-00 J2-A17 NM!
1 RIB – Nose tip – right 12652-00 J2-A16 NM!
1 RIB – Tip – left 12912-00 J2-A11 NM!
1 RIB – Tip – right 12912-01 J2-A15 NM!
8 RIB – Three quarter -00001-079 E2-A143 427.90
2 RIB – Three quarter special -00006-041 J2-A18 427.90
RIB – NOSE REPAIR – For splicing all ribs 16621-00 SK-106 NM!
RIB CAPSTRIP – Repair strip – 12” long 00031-24 1190 NM!
