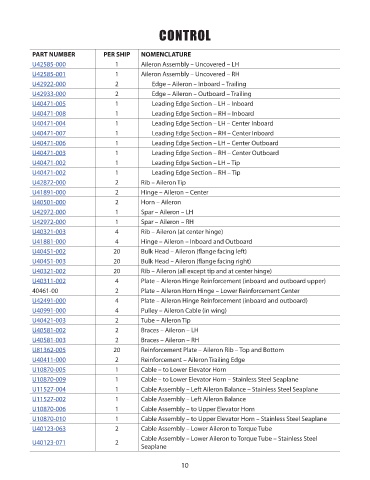

CONTROL

PART NUMBER PER SHIP NOMENCLATURE PRICE
U42585-000 1 Aileron Assembly – Uncovered – LH 1707.17
U42585-001 1 Aileron Assembly – Uncovered – RH 1707.17
U42922-000 2 Edge – Aileron – Inboard – Trailing 38.86
U42933-000 2 Edge – Aileron – Outboard – Trailing 117.17
U40471-005 1 Leading Edge Section – LH – Inboard 35.65
U40471-008 1 Leading Edge Section – RH – Inboard 36.81

U40471-004 1 Leading Edge Section – LH – Center Inboard 49.00
U40471-007 1 Leading Edge Section – RH – Center Inboard 47.86
U40471-006 1 Leading Edge Section – LH – Center Outboard 56.49
U40471-003 1 Leading Edge Section – RH – Center Outboard 43.88
U40471-002 1 Leading Edge Section – LH – Tip 28.90
U40471-002 1 Leading Edge Section – RH – Tip 28.90
U42872-000 2 Rib – Aileron Tip 23.31
U41891-000 2 Hinge – Aileron – Center 89.85
U40501-000 2 Horn – Aileron 208.15
U42972-000 1 Spar – Aileron – LH 101.73
U42972-000 1 Spar – Aileron – RH 101.73
U40321-003 4 Rib – Aileron (at center hinge) 28.57
U41881-000 4 Hinge – Aileron – Inboard and Outboard 91.18
U40451-002 20 Bulk Head – Aileron (flange facing left) 12.01
U40451-003 20 Bulk Head – Aileron (flange facing right) 12.01
U40321-002 20 Rib – Aileron (all except tip and at center hinge) 18.69
U40311-002 4 Plate – Aileron Hinge Reinforcement (inboard and outboard upper) 8.09
40461-00 2 Plate – Aileron Horn Hinge – Lower Reinforcement Center NM!
U42491-000 4 Plate – Aileron Hinge Reinforcement (inboard and outboard) 7.63
U40991-000 4 Pulley – Aileron Cable (in wing) 20.19
U40421-003 2 Tube – Aileron Tip 76.36
U40581-002 2 Braces – Aileron – LH 16.30
U40581-003 2 Braces – Aileron – RH 20.95
U81362-005 20 Reinforcement Plate – Aileron Rib – Top and Bottom 1.79
U40411-000 2 Reinforcement – Aileron Trailing Edge 9.68
U10870-005 1 Cable – to Lower Elevator Horn 218.58
U10870-009 1 Cable – to Lower Elevator Horn – Stainless Steel Seaplane 176.41
U11527-004 1 Cable Assembly – Left Aileron Balance – Stainless Steel Seaplane 151.33

U11527-002 1 Cable Assembly – Left Aileron Balance 174.01
U10870-006 1 Cable Assembly – to Upper Elevator Horn 196.35
U10870-010 1 Cable Assembly – to Upper Elevator Horn – Stainless Steel Seaplane 176.41
U40123-063 2 Cable Assembly – Lower Aileron to Torque Tube 139.16
Cable Assembly – Lower Aileron to Torque Tube – Stainless Steel
U40123-071 2 128.17
Seaplane

10
