Product Description
- 6-inch external brake assembly
- Single cylinder
- Dual piston
- Metallic lining
Applicability Chart
| Aircraft | Main Wheel | Disc | Brake Assembly | Lining |
|---|---|---|---|---|
| Britten-Norman Group BN-2B, BN-2T, 1979 and later | 40-90B | 164-02201 | 030-02303 | 066-06500 066-06200 |

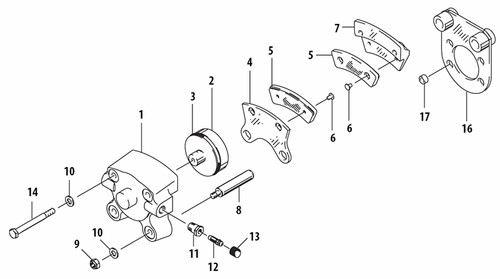

Illustration Key
| Number | Description | Quantity | Part Number |
|---|---|---|---|
| 1 | Cylinder Assembly Cylinder |
1 1 |
091-08600 061-06500 |
| 2 | Piston Assembly Piston |
2 2 |
092-00800 062-00700 |
| 3 | Insulator | 2 | 088-00100 |
| 4 | O-Ring | 2 | MS28775-222 |
| 5 | Pressure Plate Assembly Pressure Plate |
1 1 |
073-03800 063-00600 |
| 6 | Lining | 2 | 066-06500 |
| 7 | Pin | 4 | 177-00300 |
| 8 | Back Plate Assembly Back Plate |
2 2 |
074-02300 064-00500 |
| 9 | Lining | 2 | 066-06200 |
| 10 | Anchor Bolt | 2 | 069-00200 |
| 11 | Nut | 2 | MS21042-06 |
| 12 | Washer | 2 | AN960-616L |
| 13 | Insulator Shim | 1 | 068-01100 |
| 14 | Bolt | 4 | AN4H16A |
| 15 | Washer | 4 | NAS1149F0432P |
| 16 | Bleeder Seat | 1 | 081-00200 |
| 17 | Bleeder Screw | 1 | 079-00300 |
| 18 | Bleeder Cap | 1 | 183-00100 |
| 19 | O-Ring | 2 | MS28775-012 |
| 20 | Tube Fitting | 1 | AN919-2D |
| 21 | Torque Plate (supplied by airframe manufacturer) | 1 | - |
Product Videos
Custom Field
Aircraft Britten-Norman
Size 6 inch
