Product Description
- 5.00-5 main wheel assembly
- External
- Tube type tire
Applicability Chart
| Aircraft | Main Wheel | Disc | Brake Assembly | Lining |
|---|---|---|---|---|
| 1963 Cessna 150C, serial numbers 59701 to 60087 | 040-01900[1] | 164-00400 | 030-00900 | 066-10600 |
- 5.00-5 tires

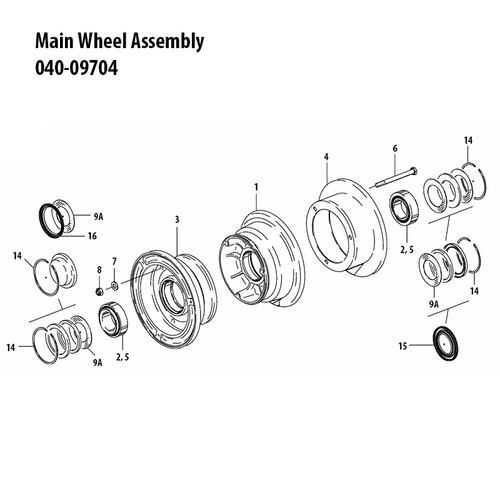

Illustration Key
| Number | Description | Quantity | Part Number |
|---|---|---|---|
| 1 | Inner Wheel Half | 1 | No longer available |
| 2 | Bearing Cup | 2 | 08231 |
| 3 | Outer Wheel Half | 1 | No longer available |
| 4 | Brake Disc | 1 | 164-00400 |
| 5 | Bolt | 3 | AN4-31A |
| 6 | Washer | 6 | NAS1149F0463P |
| 7 | Nut | 3 | MS21044N4 |
| 8 | Grease Seal Ring | 2 | 153-00800 |
| 9 | Snap Ring | 2 | 155-00200 |
| 10 | Grease Seal Felt | 1 | 154-00600 |
| 11 | Hub Cap | 1 | 158-00500 |
| 12 | Bearing Cone | 2 | 08125 |
| 13 | Slotted Truss Head Screw | 1 | AN526-1024-8 |
| 14 | Lock Washer | 1 | MS35333-39 |
| 15 | Dust Shield | 1 | 157-00500 |
Product Videos
Custom Field
Aircraft Cessna
Size 5 inch
